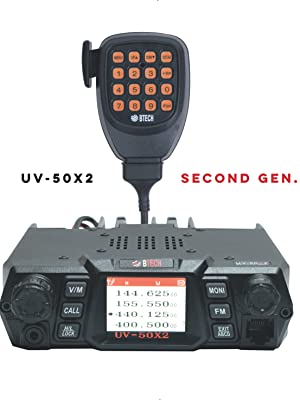

BTECH UV-50X2 (Second Generation) Dual Band 50W Mobile Radio
$209.89
BTECH Mobile UV-50X2 (Second Gen.) 50 Watt Dual Band Base, Mobile Radio: VHF, UHF Amateur (Ham)
- Ships from the USA
- U.S.-based product support
- Secure checkout
- Returns & warranty support
UV-50X2 (Second Generation) 50W Mobile Two Way Radio
Second Generation
The UV-50X2 is very much the same radio, our users have come to enjoy, with several new functionality improvements. The UV-50X2 has seen several performance improvements and tweaks in its second generation release.
RJ45 Audio Input & Output
The UV-50X2 has new menus and operations that allow audio I/O from its RJ45 microphone port. This allows the UV-50X2 to be installed for custom applications, where users want more control on where the speaker and mic audio is routed to.
VOX Handsfree Support
The UV-50X2 (Second Generation) includes VOX support. VOX allows for handsfree use with your favorite audio accessories or the included handheld microphone.
- BTECH radios use an upgraded Power Chipset
- Customizable PTT Return Times: When handling multiple conversations, the radio allows users to customize if the radio automatically switches to respond to active channels, or allow the user to set one channel default to transmit on.
- Dual Synchronize Display Mode: Synchronize Up to 2 Channels - and display both their channel name and channel frequency!
- Microphone Audio Gain Settings: Sound great and customize your microphone output for any repeater
- Expanded Frequency Range Support
- Auto Power Off Function: Save your battery and prevent unnecessary power draining
- Channel Mode Editing Settings: Edit saved memory channels on-the-fly; our radio does not require you to delete a channel to make changes
- New Scanning Modes: Auto Scan (Scan with a power reboot), Scanning Resume, and Variable Frequency Scanning
- Quad Watch Delay Time: Allows the receiver to stay on the secondary channel longer after incoming transmission - customize the delay up to 50 seconds; This avoids manually channel switching when you are engaged with simultaneous contacts on two frequencies
- Randomization Privacy Mode
RJ45 to K1 Audio Adaptor
Uniquely customize your UV-50X2
Group Tones supported
The UV-50X2 supports the most common Analog Tones. It supports CTCSS, DCS, 2Tone, 5Tone, and DTMF calling methods. Set-up your calling methods to call by group tones. Tone calling (private line) is required by most repeater applications and the UV-50X2 supports the latest standards.
The UV-50X2 can even send DTMF tones. This allows for sending ANI (Caller ID) or remote commands that require DTMF tones; or it can receive incoming DTMF tones to allow for remote stun or kill commands
Quad Watch and Display Sync
The UV-50X2 operates as multiple radios in one, with either VHF or UHF as the 'Main' band, while simultaneously watching up to 3 other frequencies or channels; and, if you like, you can configure your UV-50X2 for simultaneous VHF-VHF or UHF-UHF operation, too! Additionally, as a new feature added: you can monitor both VFO (frequency) and channel modes simultaneously.
Dual Sync DIsplay:
With Dual Sync Display, you can synchronize channel lines to one or two channels. This allows you to sync display 'lines' to a single channel allowing the user to have both frequency and channel name data displayed simultaneously.
Technical Specifications
| Bands Supported | VHF & UHF Dual Band Radio |
| Memory Channel | 200 Channels |
| Output power | 50W/5W |
| Tone Support | CTCSS, DCS, 5TONE, 2TONE, DTMF |
| Accessory Jack | Mono Speaker Output In Rear, RJ45 Audio Output in Front, K1 Accessories support with included Adaptor |
| Additional Features | Display Sync, Nuisance Channel Scan Skip, SOS Alarm, NOAA Weather Channels, Transmit Time-Out, Busy Channel Lockout, DTMF Keypad, Adjustable Scanning Modes, Quad Watch, Adjustable Squelch |
| Size | 5.7 (w) x 1.85 (h) x 7.5 (d) in |
| Weight | 2.65lb |
| Antenna Jack | UHF (SO239 Connector) |
Common Questions and Answers:
- Q: What is the product support?
- A: If you have any issues or concerns, reach out to our support team, who will be happy to assist with any setup issues. The UV-50X2 includes support against any manufacturing defects for a full year.
- Q: Is it compatible with other analog radios.
- A: It will support 99% of analog systems. The UV-50X2 supports all CTCSS, DCS, 5TONE, 2TONE, and DTMF call tones used by a majority of analog radio systems.
- Q: What is the maximum range?
- A: Range varies on topography: Repeater Use: Up to 100 miles | Hill to Valley: 36 miles | Open Flat Terrain: 3-5 miles | Urban/Outside Buildings: ~1 mile
BTECH: We are proud to be here in the USA
BTECH radios are designed and supported right here in the USA. A BTECH label means you are getting a radio with real US based support, and development! If you ever have an issue, our team will be prompt, knowledgeable, and supportive to ensure your radio operates exactly as it should.
Product details & support
Features and Details
- The UV-50X2 has been upgraded with Audio I/O support through the RJ45 Microphone Port. Included is also a K1 Audio adaptor. The K1 accessory jack is the most common radio accessory jack in the market. This means the UV-50X2 has the widest support of aftermarket audio accessories allowing you to find the best accessories for however you use your radio.
- The UV-50X2 includes all of the necessary mounting hardware to easily wire into any vehicle. You can use the UV-50X2 as a base station at home or in the office with the optional RPS-30M power supply (not included).
- Recommended Accessories: Pair UV-50X2 with the Nagoya UT-72 Magnetic Mount Antenna for easy installation. The PC04 FTDI Cable is recommended for easy computer programming
- The UV-50X2 operates as multiple radios in one, with either 144 MHz or 430 MHz as the "Main" TX/RX band, while simultaneously watching up to 3 other frequencies or channels; and, if you like, you can configure your UV-50X2 for simultaneous VHF-VHF or UHF-UHF operation, too!
- Kit Includes: BTECH UV-50X2, RJ45 to K1 Audio Adaptor, Speaker Mic, DC Cable, Radio & Mic Brackets, Mounting Hardware, and User Guide
Product Information
| Package Dimensions | 12.28 x 7.72 x 2.72 inches |
|---|---|
| Item Weight | 4.19 pounds |
| Item model number | UV-50X2 |
| Is Discontinued By Manufacturer | No |
| Additional Features | Software and Information at: https://baofengtech.com/uv-50x2, YouTube Tutorials: https://www.youtube.com/c/Baofengtechradio |
| Other display features | Wireless |
| Manufacturer | BTECH |
| Date First Available | March 17, 2017 |
Compatible accessories for UV-50X2
Matched using the radio’s connection, tuning, and exact-fit compatibility data.
Setup & programming
Power & charging
Antennas & mounting
Cables & adapters
Michael A Shoptaw –
I’ve had this radio for several months now using it as a base station. It has been a great radio and I’ve no issues with it at all. I would highly recommend this radio.
matte181 (verified owner) –
I have a few Baofeng products and this one is the newest addition. It’s easy to program and even though the display is small, it’s still easy to read. The speaker is crisp and clear. The only issues I have come up with are, 1 the mounting bracket. When I was inserting the screws they didn’t seem like they wanted to seat all the way down and one decided to sheer clean off. 2 is the antenna mount. The NMO mount and antenna don’t appear to have the proper fit like my other set up. Again they too are not as tight as they probably should be. I did try a couple different things to try and tighten them up and nothing. Something Baofeng my wish to look into. It’s nothing that won’t keep me from buying from Baofeng, but I will make sure ahead of time about proper fitting before purchases. Thank you BaofengTech for another great product.
Kyle –
Great rig, excellent customer service!
Andy –
I’ve had this radio for awhile now and it’s a good solid radio, easy to use. I built it into a go-box for 50 watts of portable power. Only issue I’ve had is the screen in the bright sun is a bear to see. I’ll have to play with the colors to see if I could make it better. Wish there was a brightness setting.
mattsonservice –
My HAM Shack burned, and this radio survived, I have been using it as a base with power supply, as soon as I get my 1975 Jeep CJ5 restored this will be in a radio box between the seats, I have no idea how long ago I purchased this radio it has been good quality, good sound and trouble free. of all my radios this ties for 1st place with a BF-F8HP
Gimli –
Best inexpensive radio I own! I generally buy Kenwood, but wanted something smaller in my 4×4. Paired with the Comet CA-2x4SR antenna, wow, what a combo. I can get out over 35 miles on simplex GMRS! 2m in the Cascade mountains 15 to 20 miles is no issue whatsoever.
BTECH I am truly impressed!!!
Christopher Knowles (verified owner) –
I have had my UV-50X2 for nearly two years. It was my first ham radio which wasn’t an HT. I am a Vietnam Veteran living on Social Security so money is scarce. I feel like I got my money’s worth and my transmission checks from all my fellow hams on North America have complimented my signals from Martha’s Vineyard.
Danny Poole (verified owner) –
Radio is okay microphone is cheesy and cheap
Rex Pierce (verified owner) –
Excellent radio, great features. Have hit repeaters over a 100 miles away. Easy to program from the Mike.
Rex Pierce (verified owner) –
Excellent radio I have hit repeaters 100 miles away. Easy to program from mike. Great features
Fred –
I recently purchased this radio for my base station because of my experiences with the UV-25X4. The radio is well made and it works fine as part of my shack. It sends and receives strong signals. It was easy to set up and operate.
David Smith –
I love the way it operates. It’s easy and compact, fixs perfectly where I mounted it.
barry.mister (verified owner) –
I love this radio. It is versatile and powerful. I’ve had it installed in my vehicle and as a base station. At the moment it is configured at home with a simplex repeater box and works great. I haven’t had any issues with duty cycle. Combined with quality cables and the correct antenna for the purpose I get great SWR and advertised power on VHF and UHF.
