3RD GEN. – BTECH MOBILE UV-5001

0 out of 5

( There are no reviews yet. )

BTECH UV-5001 Dual Band (VHF/UHF) Analog MOBILE Two-Way Radio

SKU: 58 Category: Discontinued Mobile Products

Add to wishlist

Generation 3 Updates
The 3rd Gen. BTECH mobiles focus on significant hardware updates. The UV-5001 update includes a built-in internal temperature cooling fan and an exclusive updated board which provides unmatched performance compared to any transceiver in its class – focusing on refined audio clarity, selectivity, and filtering. The firmware has also been updated with user adjustable DTMF Gain and Mic Gain. Power toggling is now selectable right on the keypad.

What Makes it Unique?
Synchronize Display Mode
Scrambler/Inversion, DTMF, 5Tone, 2Tone, CTCSS, and DCS Calling Modes (Remote Kill/Stun Supported)
A new easy programming user’s guide
VFO Lockout
Menus, Programming, and Reset Lockout
Auto Power Off Function
Dual Watch Delay Time: Allows the receiver to stay on the secondary channel longer after incoming transmission – customize the delay up to 50 seconds; This avoids manually channel switching when you are engaged with simultaneous contacts on two frequencies

RECOMMENDED Accessories
Pair the UV-5001 with the Nagoya UT-72 Magnetic Mount Antenna for easy installation with the UHF antenna connectors.

The PC04 FTDI Cable is recommended for easier computer programming

Wide Frequency Coverage
The UV-5001 provides extended receiver coverage of 136-174MHz and 400-520MHz (beyond the Amateur bands), so you can keep informed of communication activities in the public safety, commercial, and government communications ranges. The UV-5001 is able to Transmit on Narrowband (12.5kHz) and Wideband (25kHz).

Dual Watch Receiver
The UV-5001 operates as two radios in one, with either 144 MHz or 430 MHz as the “Main” TX/RX band, while simultaneously watching the other band. And, if you like, you can configure your UV-5001 for VHF-VHF or UHF-UHF operation, too!

Simultaneous Display
For those that want to have the most information at their fingertips on a specific channel – they can synchronize the displays. You can configure the displays to synchronize and allow both the Channel Name and frequency to simultaneously display on the selected channel.

High Power Output
To get your message through when it counts, the UV-5001 puts out 50 Watts of power on the VHF band, and 45 Watts on UHF.

FM Broadcast Station
You can listen to the FM Broadcast radio, while still monitoring your radio frequencies in the background. Any incoming call will be given priority insuring you never miss an important call while listening to the radio.

Group Tones supported
The UV-5001 supports the most common Analog Tones. It supports CTCSS, DCS, 2Tone, 5Tone, Voice Inversion, and DTMF calling methods. Set-up your calling methods to call by group tones. Tone calling (private line) is required by most repeater applications and the UV-5001 supports the latest standards.

The UV-5001 can even send DTMF tones. This allows for sending ANI (Caller ID) or remote commands that require DTMF tones; or it can receive incoming DTMF tones to allow for remote stun or kill commands

Fully Customizable through the Free Software
You can program your UV-5001 exactly how you want it. There are 200 programmable memory channels. You can add or remove channels from scanning list. You can give channels alphanumeric names. The radio has an available low power setting of 10 watts, allowing you to choose how far you can communicate. You can easily program from a PC to set-up the radio to operate exactly as needed. (The PC04 FTDI Cable is recommended for easy programming)

What’s In the Box?BTECH UV-2501+220 Mobile

Mounting Bracket and Hardware

Remote Speaker Mic and Mic Bracket

Inline Fuse and DC Connectors

Features25KHz/12.5KHz Switchable (Wide/Narrow Band)

FM Radio (65.0MHz-108.0MHz)

Large Tri-color LCD Display (3 Selectable Colors)

High /Low RF Power Switchable

50 CTCSS/ 104 DCS Tones

5Tone Support

2Tone Support

Voice Inversion (Scrambling) Support

Tone searching/scanning

Dual standby

PC programmable

Transmitter time-out timer(TOT)

Busy channel lock-out(BCLO)

Remote Stun/Kill

UV-2501+220 MINI SPECIFICATIONS

Frequency range:

[TX] 136 – 174MHz, 210 – 230MHz, 400 – 520MHz

[RX] 136 – 174MHz, 210 – 230MHz, 400 – 520MHz, 68-108MHz (FM Broadcast)

Channel Capacity:

200 Channels

Channel Spacing

25KHz (wide band)12.5KHz (narrow band)

Sensitivity

≤0.25μV (wide band) ≤0.35μV (narrow band)

Operation Voltage

13.6V DC ±20%

Frequency step:

2.5-25KHz Selectable

Antenna:

Antenna Connector: SO-239

Stability:

±2.5ppm

Output power:

2M: 25W (Peak), 20W (AVG) / 10W

1.25M: 20W (Peak) 15W (AVG) / 7W

70CM: 20W (Peak) 15W (AVG) / 7W

Audio Power Output

2500mW/10%

BTECH Mobile Radio FTDI Cable

PC-04 Programming Cable

$20.46

FTDI Programming Cable

PC, Mac, and Linux Compatible

For BTECH UV-25X2, UV-50X2, UV-25X4

Add to Cart
Buy on

Product Description

Nagoya TB-320A Fold-Over 39-Inch PL-259 Mount Triband 2m/1.25m/70cm (144/220/430MHz) Antenna, Includes NMO to UHF (SO-239) Adapter

Nagoya TB-320A 38.5″ Fold-Over Tri-Band Antenna

$57.95

Includes NMO to SO-239 Adapter

2m/1.25m/70cm (144/220/430MHz)

PL-259 Connector – 38.5″ Tall

Requires NMO or UHF antenna Mount

Add to Cart
Buy on

Product Description

Nagoya RB-50 5/8 NMO Mount Magnet, 18' RG-58 PL-259, Includes Rain Cap

Nagoya RB-50 (5.15″ Base) 5/8 NMO Mount Magnet, 18′ RG-58 PL-259, Includes Rain Cap

$27.99

18 Feet RG 58A/U

Solid Brass Chromed NMO

Gold contact pin, PTFE insulator, Tinned copper braid 95%

For Antennas 50″ or less in height

Add to Cart
Buy on

Product Description

BTECH Nagoya GPK-01

Nagoya GPK-01 NMO Ground Plane Kit

$27.99

21″ Radials, SO-239 Connector

Convert Mobile Antenna for Base or Field Use

Mounts to 2″ Pole, Mast, Pipe

Add to Cart

Buy on

Product Description

BTECH Replacement Microphone

Replacement Microphone: UV‐25X2, Uv-25X4, UV-50X2

$16.46

Also Compatible: Gen. 1/Gen. 2

RJ-11 Plug

Works on Similar Radios

Add to Cart

BTECH DC Power Cable for UV-50X2 and UV-50X3

BTECH DC Power Cable for UV-50X2, UV-50X3

$11.99

Compatible: UV‐25X2, UV‐25X4

Not Compatible with UV-5001

Add to Cart

BTECH Cigarette Power Cable for UV-2501

BTECH Cigarette Power Cable for UV‑25X2 and UV‑25X4

$11.99

Also Compatible: Gen. 1/Gen. 2

Not Compatible: UV-50X2/X3

Add to Cart

What’s In the Box?

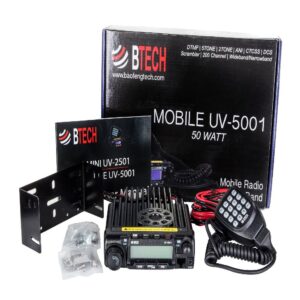

BTECH UV-5001 Mobile

Mounting Bracket and Hardware

Remote Speaker Mic and Mic Bracket

Inline Fuse and DC Connectors

Features

25KHz/12.5KHz Switchable (Wide/Narrow Band)

FM Radio (65.0MHz-108.0MHz)

Large Tri-color LCD Display (3 Selectable Colors)

High /Low RF Power Switchable

50 CTCSS/ 104 DCS Tones

5Tone Support

2Tone Support

Voice Inversion (Scrambling) Support

Tone searching/scanning

Dual standby

PC programmable

Transmitter time-out timer(TOT)

Busy channel lock-out(BCLO)

Remote Stun/Kill

UV-5001 MOBILE SPECIFICATIONS

Frequency range:

[TX] 136 – 174MHz, 400 – 520MHz

[RX] 136 – 174MHz, 400 – 520MHz, 68-108MHz (FM Broadcast)

Channel Capacity:

200 Channels

Channel Spacing

25KHz (wide band)12.5KHz (narrow band)

Sensitivity

=0.25µV (wide band) =0.35µV (narrow band)

Operation Voltage

13.6V DC ±20%

Frequency step:

2.5-25KHz Selectable

Antenna:

Antenna Connector: SO-239

Stability:

±2.5ppm

Output power:

50W / 10W

Audio Power Output

1000mW/10%

Download Programming Software
BTECH UV-5001 VIP Software

Advanced Programming Software
BTECH UV-5001 Squelch Adjustment Software

How-To? PDFs

BTECH UV-5001 2Tone Programming Tips
Cross Band (X-Band) Repeater – With 2 BTECH Mobiles & Modified RJ45 Cable

Owner’s Manual
